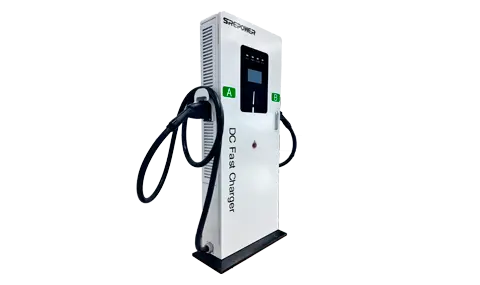

Output current of 60kw DC charging station.

Output current of 60kw DC charging station.

The output current of the 60kW DC charging station is 0-100A (ordinary version) and 0-150A (constant power version), with a charging power measurement accuracy of 0.5 level, a working environment temperature of -25 ℃~+50 ℃, a voltage stabilization accuracy of ≤± 0.5%, an output voltage range of 250-750VDC, a maximum output power of 60kW, an efficiency of ≥ 94.5%, and DC plug standards, DC charging interface standards GB/T 20234, GB/T 18487, GB/T 27930, NB/T 33008.

Output current of 60kw DC charging station
The charging power is mainly determined by the charging current and charging voltage. The higher the charging power, the greater the charging current and the higher the charging voltage. Therefore, using a charging station with higher charging power for new energy vehicles can effectively shorten the waiting time for charging and improve the convenience of using the vehicle.

However, the charging power cannot be increased arbitrarily. Although super charging piles with charging power of over 450KW have been developed, the higher the charging power, the higher the requirements for the quality of the power grid circuit and battery. Otherwise, it is easy to cause excessive heat generation in the circuit and battery due to excessive charging current, leading to combustion accidents.

In addition, excessive charging voltage can also reduce the battery's reducing ability and shorten its charging cycle life. Therefore, currently, the charging power of DC charging piles is mainly below 120KW.

There is also a 60kW DC charging station, which does not mean that it will reach its rated value when you actually use it. The specific power output is determined by the internal BMS management system of the electric vehicle, which commands the power output of the charging station based on the lithium battery status of the electric vehicle.
